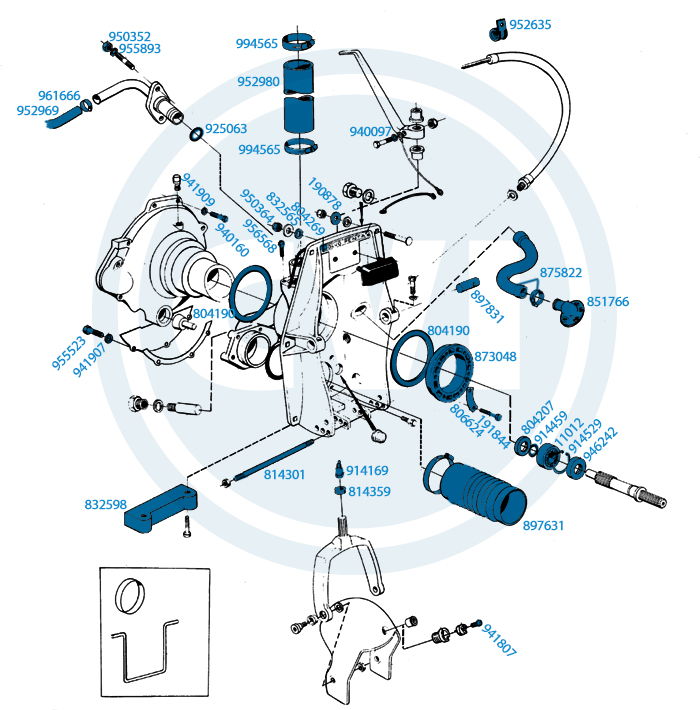

1.) Connector parts

1.) Connector parts

= In stock
= Out of stock
= 5-7 days delivery
SP = Stacked pricing available - click on product
Sorting order:
Gasket set complete, AQ200/250/270/270T/275,A/280/280T/290 875192 Gasket set complete, AQ200/250/270/270T/275,A/280/280T/290
Gasket set complete, for AQ250/270/275280/290 with DP lower gear 875741 Gasket set complete, for AQ250/270/275280/290 with DP lower gear
Gasket set upper AQ200, 250, 270, 280, 285, 290, 290DP et. al. 876266 Gasket set upper AQ200, 250, 270, 280, 285, 290, 290DP et. al.
Gasket set lower drive unit 200, 250, 270, 280, 285, 290, 290DP et. al. 876268 Gasket set lower drive unit 200, 250, 270, 280, 285, 290, 290DP et. al.
Shield, AQ drives 250/270/275/A/280 (to order only) 876536 Shield, AQ drives 250/270/275/A/280 (to order only)
Bushing (lower) steering fork AQ250/270/280/290 872362 Bushing (lower) steering fork AQ250/270/280/290
Bushing (upper) steering fork AQ250/270/280/290 872363 Bushing (upper) steering fork AQ250/270/280/290
V-ring (inner diam = 36 mm later production) 839195 V-ring (inner diam = 36 mm later production)
Grease nipple, PV upper inner (45 degree) 914169 Grease nipple, PV upper inner (45 degree)
Sign "Volvo Penta" on AQ stern drive 250, 270, 275, 280, 290A 854224 Sign "Volvo Penta" on AQ stern drive 250, 270, 275, 280, 290A
Screw 804269 Screw
SP
Pivot pin for 2 bolts, AQ280, 290, 290A, 290DP, SP-A/A1/A2, SP-C, SP-E, DP-A1/A2 etc 852705 Pivot pin for 2 bolts, AQ280, 290, 290A, 290DP, SP-A/A1/A2, SP-C, SP-E, DP-A1/A2 etc
Bolt 941807 Bolt
Rubber sealing ring (V-ring) 814359 Rubber sealing ring (V-ring)
Bushing 814640 Bushing
Bushing AQ250, AQ270 897731 Bushing AQ250, AQ270
Bushing for pivot pin AQ280, AQ290/A, AQ290DP, SP-A, SP-A1, SP-A2 +more 853048 Bushing for pivot pin AQ280, AQ290/A, AQ290DP, SP-A, SP-A1, SP-A2 +more
Gasket 897745 Gasket
Allen bolt for bearing holder AQ drive 100 (6/unit) 956568 Allen bolt for bearing holder AQ drive 100 (6/unit)
Rubber seal for shield AQ200/250/270T/275/280T 897726 Rubber seal for shield AQ200/250/270T/275/280T
O-ring 925256 O-ring
Bellows kit (without ) AQ200/250/270/275/280/280DP/290/290DP 876631 Bellows kit (without ) AQ200/250/270/275/280/280DP/290/290DP
Zinc anode AQ drive 250 (late), 270, 275, 280, 280DP, 280PT, 285SP-A/MT 832598 Zinc anode AQ drive 250 (late), 270, 275, 280, 280DP, 280PT, 285SP-A/MT
Aluminium anode AQ drive 250 (late), 270, 275, 280, 280DP, 280PT, 285SP-A/MT 832598-1 Aluminium anode AQ drive 250 (late), 270, 275, 280, 280DP, 280PT, 285SP-A/MT
Setting pin with fittings (stainless) AQ200/250/270/270T/275/275A/280L,T,DP, 285A, 290A, DP) 814301 Setting pin with fittings (stainless) AQ200/250/270/270T/275/275A/280L,T,DP, 285A, 290A, DP)
Nyloc nut (stainless) 941885 Nyloc nut (stainless)
Bearing pin flywheel casing AQ200 to 290 853175 Bearing pin flywheel casing AQ200 to 290
Lock screw set for bearing pin, AQ drive 200/250/270/275/280/285 941873-KIT Lock screw set for bearing pin, AQ drive 200/250/270/275/280/285
Bolt kit for clamping ring 191844 Bolt kit for clamping ring
Seal ring flywheel housing AQ drive (outer, 200mm) (for engines w/o forward support - 2 req'd) ) 804190 Seal ring flywheel housing AQ drive (outer, 200mm) (for engines w/o forward support - 2 req'd) )
Lock plate flywheel casing (3 pcs required) 806624 Lock plate flywheel casing (3 pcs required)
Gasket 832565 Gasket
Bolt 940162 Bolt
Washer 940097 Washer
SP
Lock nut  (1/4" - 20 UNC) 950352 Lock nut (1/4" - 20 UNC)
Washer 955893 Washer
SP
Hose clamp 961666 Hose clamp
Hose, AQ drives 250/270/T/280/T/290 839091 Hose, AQ drives 250/270/T/280/T/290
O-ring 850418 O-ring
Washer 190878 Washer
SP
Nut 940176 Nut
SP
Repair kit drive 200/250   (AQ110/AQ120A/AQ115A/B/C, AQ130A/B/C) RK-22059 Repair kit drive 200/250 (AQ110/AQ120A/AQ115A/B/C, AQ130A/B/C)
Seal ring in flywheel casing, AQ 100/250 (958973) 804207 Seal ring in flywheel casing, AQ 100/250 (958973)
Retaining ring 914459 Retaining ring
SP
Spring washer, curved (I.d=11,5 mm) 941909 Spring washer, curved (I.d=11,5 mm)
SP
Set screw (hex - 5/16" UNC x 5/8") 955523 Set screw (hex - 5/16" UNC x 5/8")
SP
Spring washer, curved 941907 Spring washer, curved
SP
Exhaust hose kit, AQ95/100/110/AQ115 AQ130/BB115A/B (L=200mm, ID=57mm) 952980 Exhaust hose kit, AQ95/100/110/AQ115 AQ130/BB115A/B (L=200mm, ID=57mm)
Hose clamp 994565 Hose clamp
Water hose connection AQ200/250/270/280 +AQ280DP, AQ285A, AQ290, etc 854031 Water hose connection AQ200/250/270/280 +AQ280DP, AQ285A, AQ290, etc
Hose kit AQ stern drives 200/250/270/275/280 + 280DP/280PT/285/285A/290DP/SP-A/MT 875822 Hose kit AQ stern drives 200/250/270/275/280 + 280DP/280PT/285/285A/290DP/SP-A/MT
