Start / Volvo Penta / 3.) B20 Marine / 06g.) Stern drive - AQ280 / 3.) Middle unit 280

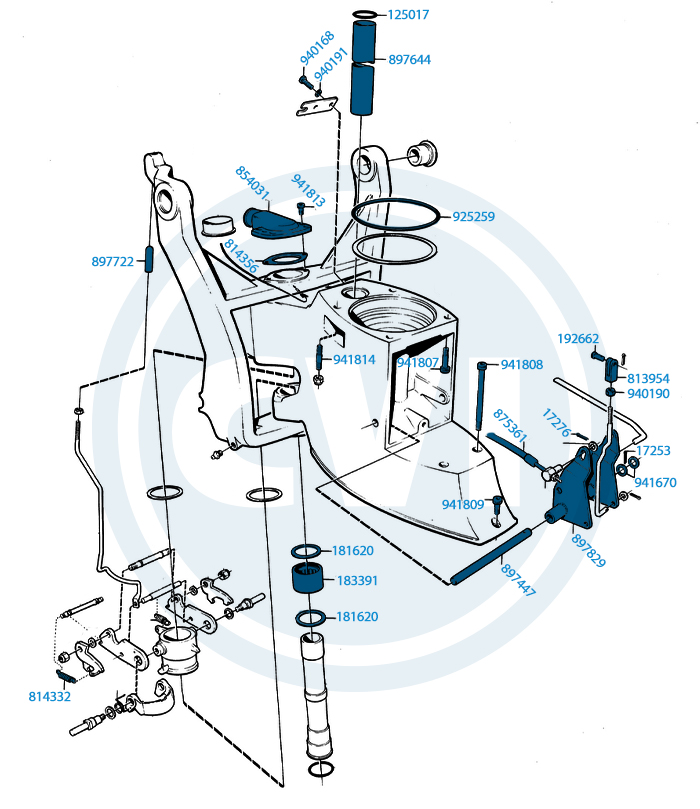

3.) Middle unit 280

3.) Middle unit 280

= In stock
= Out of stock
= 5-7 days delivery
SP = Stacked pricing available - click on product
Sorting order:
Cotter pin, outboard unit 17253 Cotter pin, outboard unit
SP
Adjuster shim (Th = 0.1 mm) 943866 Adjuster shim (Th = 0.1 mm)
Adjuster shim (Th = 0.2 mm) 943867 Adjuster shim (Th = 0.2 mm)
Adjuster shim (Th = 0.4 mm) 943868 Adjuster shim (Th = 0.4 mm)
Grease nipple 940194 Grease nipple
Needle bearing for hook-up fork AQ200/250/270/T/275/280/T/285A/290/A, SP m.m. 183391 Needle bearing for hook-up fork AQ200/250/270/T/275/280/T/285A/290/A, SP m.m.
Seal ring flywheel casing, stern drive ( type AQ 200/250/270/280/290) 181620 Seal ring flywheel casing, stern drive ( type AQ 200/250/270/280/290)
Bolt 941807 Bolt
Nyloc nut (stainless) 941885 Nyloc nut (stainless)
Fork for control rod 100A/B, + interm. hsng. on AQ250/270/280/270T/280T 813954 Fork for control rod 100A/B, + interm. hsng. on AQ250/270/280/270T/280T
Cotter pin bolt 192662 Cotter pin bolt
O-ring 941820 O-ring
SP
Bolt (stainless), internal hex head 941809 Bolt (stainless), internal hex head
SP
Bolt (stainless), internal hex head 941808 Bolt (stainless), internal hex head
Water hose connection AQ200/250/270/280 +AQ280DP, AQ285A, AQ290, etc 854031 Water hose connection AQ200/250/270/280 +AQ280DP, AQ285A, AQ290, etc
Gasket for water inlet 814356 Gasket for water inlet
Screw 941813 Screw
Screw (stainless) 940168 Screw (stainless)
Washer (stainless) 940191 Washer (stainless)
Bushing kit AQ stern drive 100/100B/270/280 826341K Bushing kit AQ stern drive 100/100B/270/280
Cube 804312 Cube
Cotter pin 17276 Cotter pin
SP
Spring set for rev. tilt inhibitor, stern drive 814332-KIT Spring set for rev. tilt inhibitor, stern drive
Pin stud 941814 Pin stud
SP
