Start / Volvo Penta / 3.) B20 Marine / 06a.) Stern drive - AQ100 / 1) Connecting parts

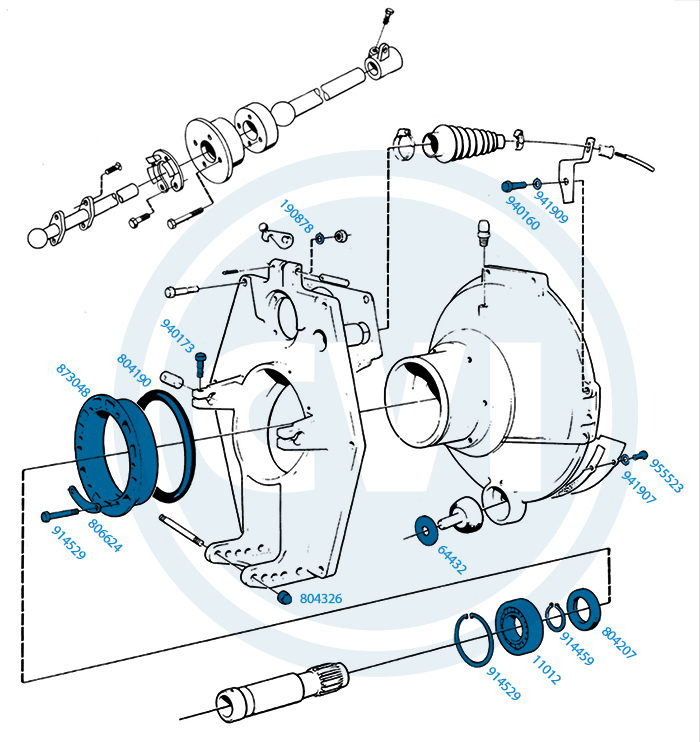

1) Connecting parts

1) Connecting parts

= In stock
= Out of stock
SP = Bracket prices available
Sorting order:
Seal ring in flywheel casing, AQ 100/250 (958973) 804207 Seal ring in flywheel casing, AQ 100/250 (958973)
$13.58
 pcs  In stock
Repair kit flywheel casing AQ60/80S/90/95/100/105/110/115/130) RK-22057 Repair kit flywheel casing AQ60/80S/90/95/100/105/110/115/130)
$18.05
 pcs  In stock
Retaining ring 914459 Retaining ring
SP $2.92
 pcs  In stock
Retaining ring 52 mm 914529 Retaining ring 52 mm
SP $2.92
 pcs  In stock
Bolt for clamping ring (6/engine) 191844 Bolt for clamping ring (6/engine)
$7.22
 pcs  In stock
Seal ring flywheel housing AQ drive (outer, 200mm) (for engines w/o forward support - 2 req'd) ) 804190 Seal ring flywheel housing AQ drive (outer, 200mm) (for engines w/o forward support - 2 req'd) )
$21.83
 pcs  In stock
Lock plate flywheel casing (3 pcs required) 806624 Lock plate flywheel casing (3 pcs required)
$10.14
 pcs  In stock
Clamping ring (replaces 806310) 873048 Clamping ring (replaces 806310)
$113.78
 Currently not in stock
Washer 64432 Washer
$9.45
 pcs  In stock
Screw stainless 940173 Screw stainless
SP $5.33
 pcs  In stock
Cap nut, drive 100 804326 Cap nut, drive 100
$47.26
 Currently not in stock
Hose clamp 994559 Hose clamp
$1.89
 pcs  In stock
Hose clamp (stainless) 11-17 mm 961663 Hose clamp (stainless) 11-17 mm
$2.92
 pcs  In stock
Screw (stainless) 940168 Screw (stainless)
$2.15
 pcs  In stock
Bolt  7/16"UNC x 38 mm, 8.8 strength 940160 Bolt 7/16"UNC x 38 mm, 8.8 strength
$1.12
 Currently not in stock
Spring washer, curved (I.d=11,5 mm) 941909 Spring washer, curved (I.d=11,5 mm)
SP $2.15
 pcs  In stock
Set screw (hex - 5/16" UNC x 5/8") 955523 Set screw (hex - 5/16" UNC x 5/8")
$0.34
 Currently not in stock
Spring washer, curved 941907 Spring washer, curved
SP $2.15
 pcs  In stock
Nut 940176 Nut
SP $2.06
 Currently not in stock
Washer 190878 Washer
$2.92
 Currently not in stock
