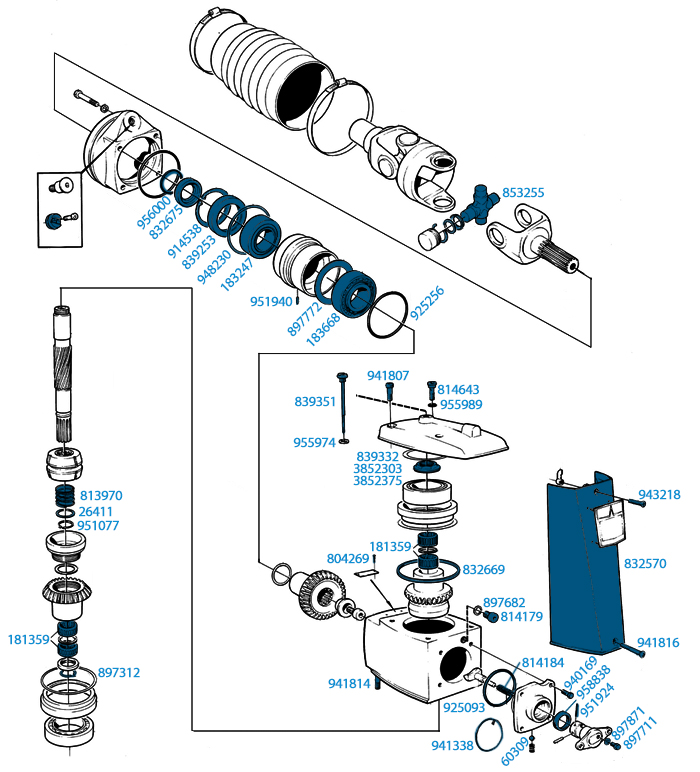

2.) Upper unit

2.) Upper unit

= In stock
= Out of stock
= 5-7 days delivery
SP = Stacked pricing available - click on product
Sorting order:
Decal on cover plate, upper gear AQ270/280/290 854144 Decal on cover plate, upper gear AQ270/280/290
Pin stud 941814 Pin stud
 SP
Sealing ring (double side) 853858 Sealing ring (double side)
Magnetic oil filler plug upper gear unit (AQ 280, 290, 290A, 290DP, SP-A, + more 981965 Magnetic oil filler plug upper gear unit (AQ 280, 290, 290A, 290DP, SP-A, + more
Fiber washer, outboard unit 897682 Fiber washer, outboard unit
 SP
Bolt 941807 Bolt
Bearing (outer), double bearing unit 200/250/270/275/280/280T/280L/280PT/280DP/290 183247 Bearing (outer), double bearing unit 200/250/270/275/280/280T/280L/280PT/280DP/290
Bearing (inner), double bearing unit 200/250/270 /275/280/280T/280L/280PT/280DP 3850852 Bearing (inner), double bearing unit 200/250/270 /275/280/280T/280L/280PT/280DP
O-ring 925256 O-ring
Oil seal upper unit/reverse gear, AQ 250/270/280/280T/290 (853670) 839253 Oil seal upper unit/reverse gear, AQ 250/270/280/280T/290 (853670)
Retaining Ring 914538 Retaining Ring
 SP
Washer, oil seal stern drive 270/275/280/290 832675 Washer, oil seal stern drive 270/275/280/290
Universal Joint AQ200/250/270/275/280/285/290 (GMB, Japan) 853255 Universal Joint AQ200/250/270/275/280/285/290 (GMB, Japan)
Gasket set for UJ, AQ200/250/270/275/280/285/290 GP-853255 Gasket set for UJ, AQ200/250/270/275/280/285/290
Pivot pin for 2 bolts, AQ280, 290, 290A, 290DP, SP-A/A1/A2, SP-C, SP-E, DP-A1/A2 etc 852705 Pivot pin for 2 bolts, AQ280, 290, 290A, 290DP, SP-A/A1/A2, SP-C, SP-E, DP-A1/A2 etc
Bolt kit, double bearing unit (AQ200, 250, 270T, 280DP, L, T) 956590-KIT Bolt kit, double bearing unit (AQ200, 250, 270T, 280DP, L, T)
Bearing vertical shaft AQ270/270T/275/275A/280, 280DP/280T/285A/290/290DP/SP-A + more 853542 Bearing vertical shaft AQ270/270T/275/275A/280, 280DP/280T/285A/290/290DP/SP-A + more
Adjuster shim (Th = 0.05 mm) 943869 Adjuster shim (Th = 0.05 mm)
Adjuster shim (Th = 0.1 mm) 946179 Adjuster shim (Th = 0.1 mm)
Adjuster shim (Th = 0.2 mm) 943870 Adjuster shim (Th = 0.2 mm)
Adjuster shim (Th = 0.1 mm) 943866 Adjuster shim (Th = 0.1 mm)
Adjuster shim (Th = 0.2 mm) 943867 Adjuster shim (Th = 0.2 mm)
Adjuster shim (Th = 0.4 mm) 943868 Adjuster shim (Th = 0.4 mm)
Shaft (vertical) AQ200 stern drive 897385 Shaft (vertical) AQ200 stern drive
Spring 3852296 Spring
Shim (1.0 mm) 26411 Shim (1.0 mm)
 SP
Lock ring 951077 Lock ring
Needle bearing vertical shaft, upper gear (2/drive) (AQ250/285/290/SP/DP/SX/DPS +more) 3852390 Needle bearing vertical shaft, upper gear (2/drive) (AQ250/285/290/SP/DP/SX/DPS +more)
Lock ring 897312 Lock ring
Nut (th = 2.0 mm) 3852301 Nut (th = 2.0 mm)
Nut (th = 2.37 mm) 3852303 Nut (th = 2.37 mm)
Nut (th = 2.65 mm) 3852375 Nut (th = 2.65 mm)
Spring, gear linkage AQ stern drive 814184 Spring, gear linkage AQ stern drive
Ball, BW35 linkage 60309 Ball, BW35 linkage
Lock wire (0.3m) 941338 Lock wire (0.3m)
Screw 897711 Screw
Shim 897871 Shim
Oil seal 958838 Oil seal
Screw 940169 Screw
Oil dipstick 839351 Oil dipstick
O-ring 955974 O-ring
Screw 804269 Screw
 SP
Cover plate, gear mechanism AQ200/250/270 +AQ280 L/T/DP, AQ285A, AQ290A/DP 832570 Cover plate, gear mechanism AQ200/250/270 +AQ280 L/T/DP, AQ285A, AQ290A/DP
Screw AQ drives 250/270/280 943218 Screw AQ drives 250/270/280
Screw, protective cover AQ200/250/270/T/275, A; 280L/T/DP, 285A, 290A/D/P 941816 Screw, protective cover AQ200/250/270/T/275, A; 280L/T/DP, 285A, 290A/D/P
 SP
